BondSEAL Peel & Stick Tanking

- Formerly BituBOND -

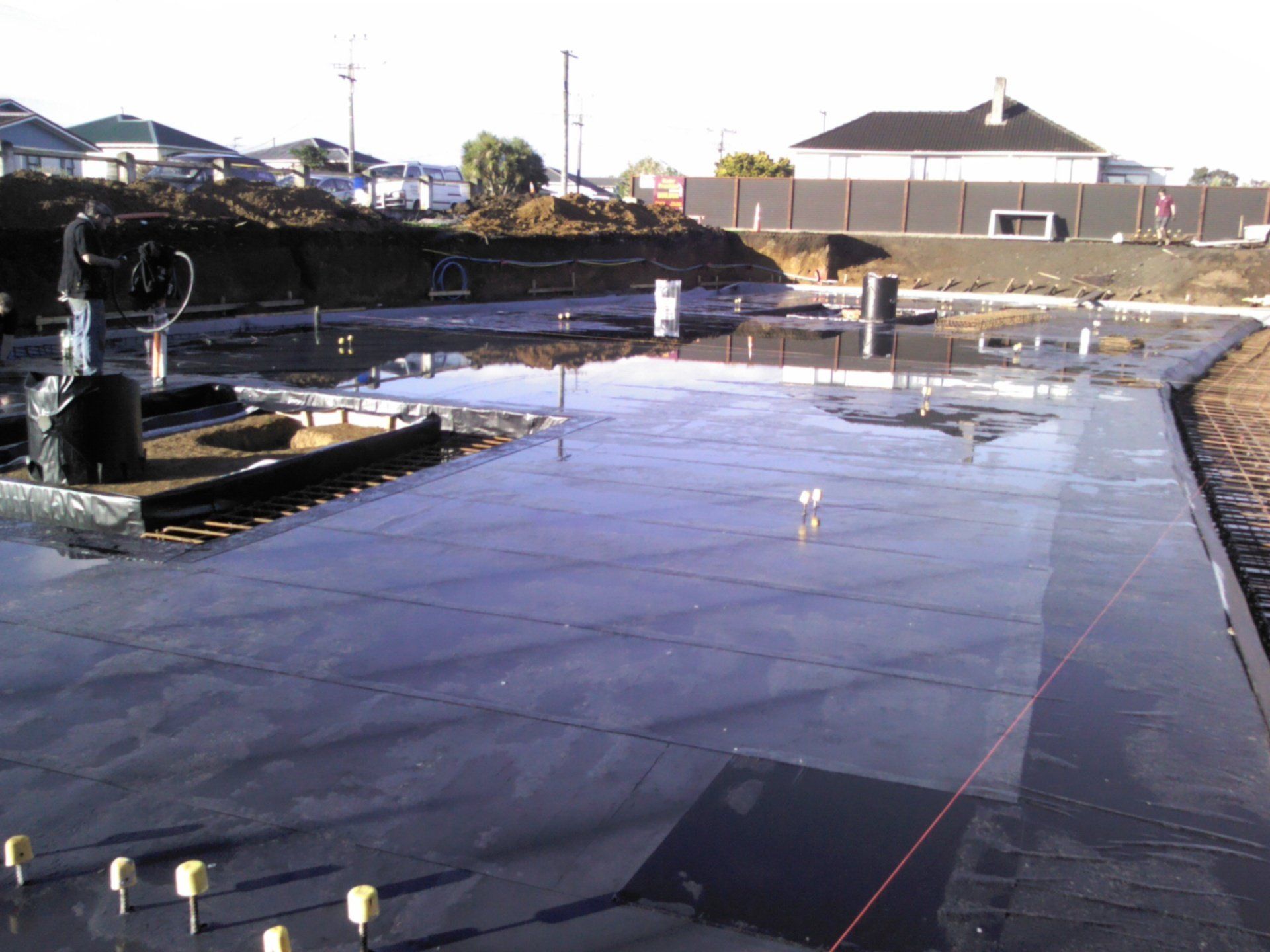

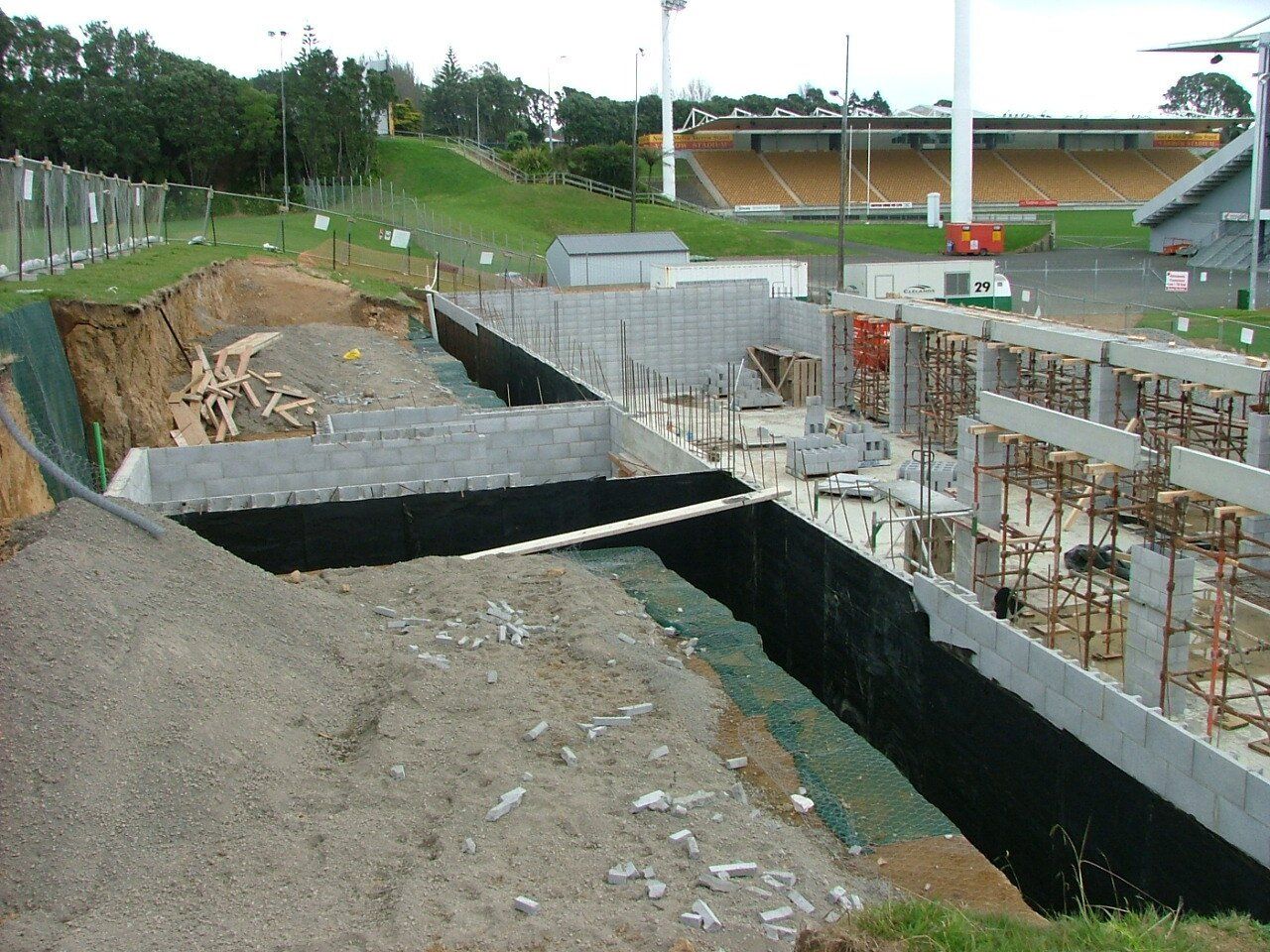

BondSEAL (formerly BituBOND) is a self-adhering sheet membrane consisting of (1.4 mm) of rubberized asphalt laminated to 4 mils (0.1 mm) of polyethylene to form a minimum 60-mil (1.5 mm) membrane. The combination of these two excellent waterproofing materials provides a high-performance, extremely durable waterproofing barrier. BondSEAL membrane is used for vertical and horizontal waterproofing on structural foundation walls and decks. Below-grade foundation walls, tunnels, split slabs, plaza decks and parking decks are all areas where BondSEAL may be applied. BondSEAL also may be used in interior areas such as mechanical rooms, laboratories, kitchens and bathrooms. BondSEAL should be covered and protected with DrainSEAL drainage composites. BondSEAL is suitable for installations where the ambient temperature is 40°F (4.4°C) or above. BondSEAL can be used for applications between 25°F (-3.9°C) and 40°F (4.4°C) if the product is stored in a heated area until use and the laps are treated with BondSEAL contact adhesive.

Features and advantages

Extra large sheets

Sheets Up to 3.7m wide and 30.4m long means faster installation and Less laps

Heat weldable seams and detailing

Fully integrated detailing, strong and secure Our support team is here to ensure everything runs smoothly, so you can focus elsewhere.

Polyester reinforced sheet

Extremely high tear and puncture resistance

Eco Friendly

Contains a high recycled content

Light colours available

Heat, light and UV reflection reducing membrane ageing and heat absorption

Can be adhered to many substrate options

Peel & stick applied – no flame hazard

20 year product warranty

Self protected by PE (polythene) film

Excellent tear and puncture resistance

Can hold up to 3.5m static head.

Excellent self-adhesive adhesion

Self sealing around mechanical fixings (nails, screws, etc)

Flexible and easy to install

Watertight immediately upon installation

Extensive history of use in New Zealand

BRANZ Appraised 558.

Downloads

Product Information

BondSEAL BROCHURE

Sealco Foundations, Underground Structures

Levels of Tanking

Sealco CCW Miradri Certificate

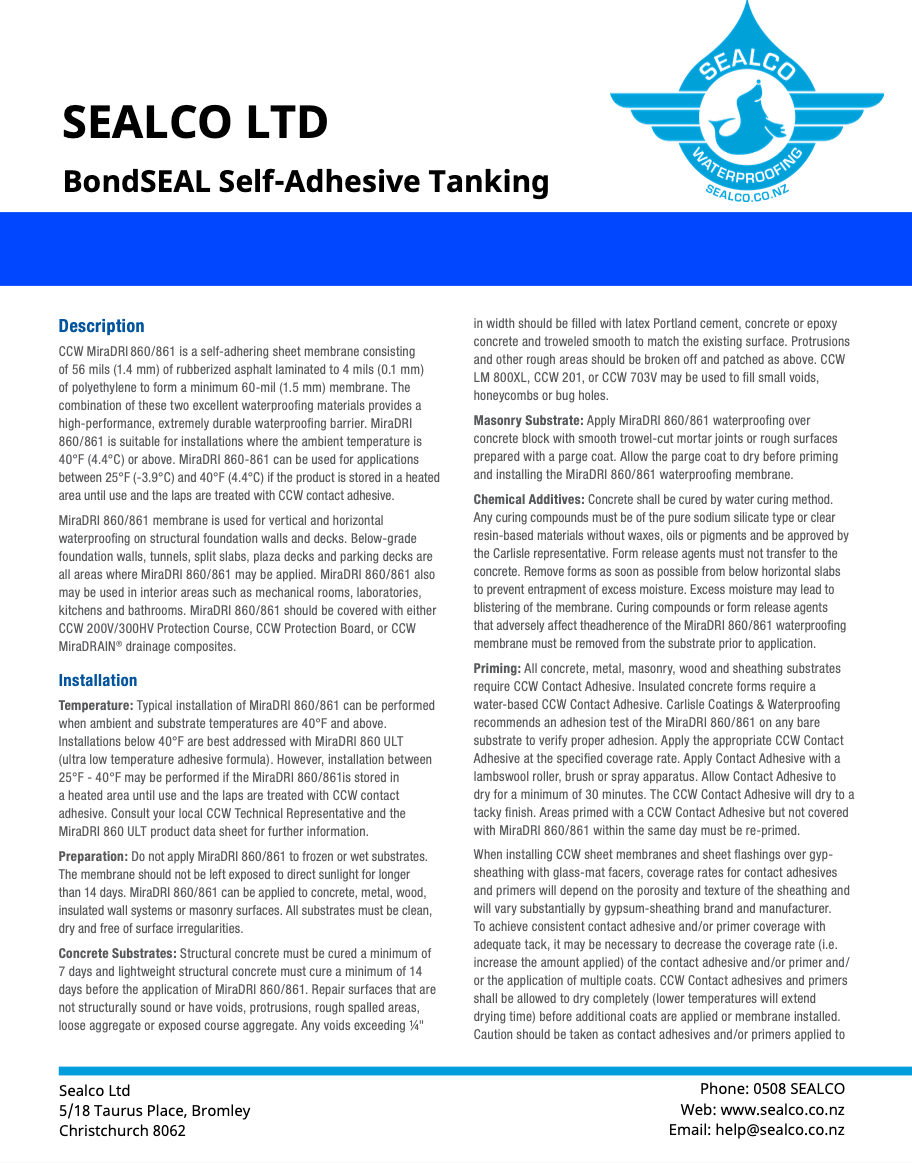

Sealco BondSEAL TDS

Product Approvals

BondSEAL BRANZ Appraisal

Architectural Information

4131WB BondSEAL Self-Stick Tanking

Checklists & Quality Control

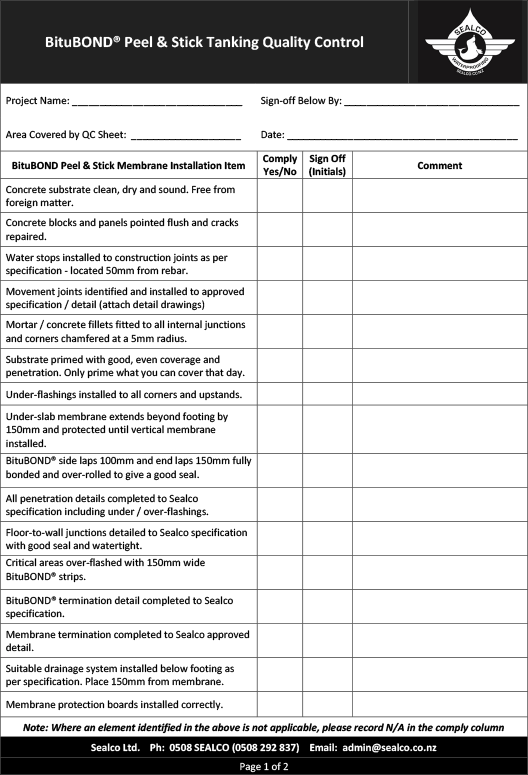

Quality Control Checklist

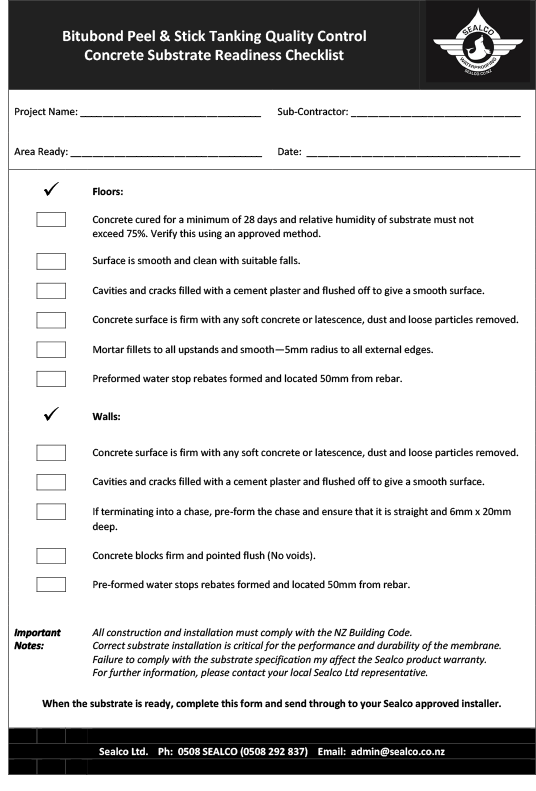

Concrete Substrate Checklist

MSDS Information

BituBOND P&S Tanking - SDS July 2021

FlameSEAL Water Based Primer - SDS June 2021

Tixoplast Sealant - SDS July 2021

Drawings

Interior Concrete Corner

Exterior Concrete Corner

Concrete Pipe Penetration

Expansion Joint

Expansion Joint 2

Construction Joint

Pile Cap Detail

Wall/Vertical Termination Type 1

Lift Pit Section

Wall Junction

Wall/Floor Slab Junction

Foundation Ground Beam

Blockwall Foundation Type 1

Exterior Corner Step 1

Exterior Corner Step 2

Interior Corner Step 1

Interior Corner Step 2

Flashing Pattern

Pipe Penetration Step 1

Pipe Penetration Step 2

Vertical Termination Type 2

Vertical Termination Type 3

Blockwall Foundation Type 2
