FlameSEAL Modified Bitumen

FlameSEAL is an SBS or APP modified bitumen membrane reinforced with 180 gsm non-woven polyester fabric.


FlameSEAL has many outstanding features, making it the ultimate choice when selecting a torch-on membrane. It's superior qualities of tensile strength, elongation and tear resistance sets FlameSEAL apart as the ideal durable solution for your waterproofing requirements. A comparison of product data sheets shows FlameSEAL to have the highest mechanical properties of any modified bitumen available. FlameSEAL has good flexibility at both high and low temperatures.



FlameSEAL COMBO is an APP/SBS-modified bitumen membrane reinforced with 180 gsm non-woven polyester fabric.


FlameSEAL COMBO heavy grade has many outstanding features, making it the ultimate choice when selecting a torch-on membrane. FlameSEAL COMBO marries the APP/SBS materials to superior performance allowing both high UV protection along with both extreme high and low temperature performances. It's superior qualities of tensile strength, elongation and tear resistance sets FlameSEAL apart as the ideal durable solution for your waterproofing requirements. A comparison of product data sheets shows FlameSEAL COMBO to have the highest mechanical properties of any modified bitumen available. FlameSEAL has good flexibility at both high and low temperatures.


SpeedSEAL is an APP/SBS-modified bitumen membrane reinforced with 180 gsm non-woven polyester fabric along with a self-adhered peel & stick backing.


SpeedSEAL
Peel & Stick modified bitumen carries all of the same outstanding features as the FlameSEAL base and either SBS or COMBO cap sheet membrane with the added feature of a full self-adhesive application. Without needing the use of the torch, this also minimises the risk of fire during installation. The speed of application can be increased by up to 40% with the self-adhesive base and cap sheet installation.

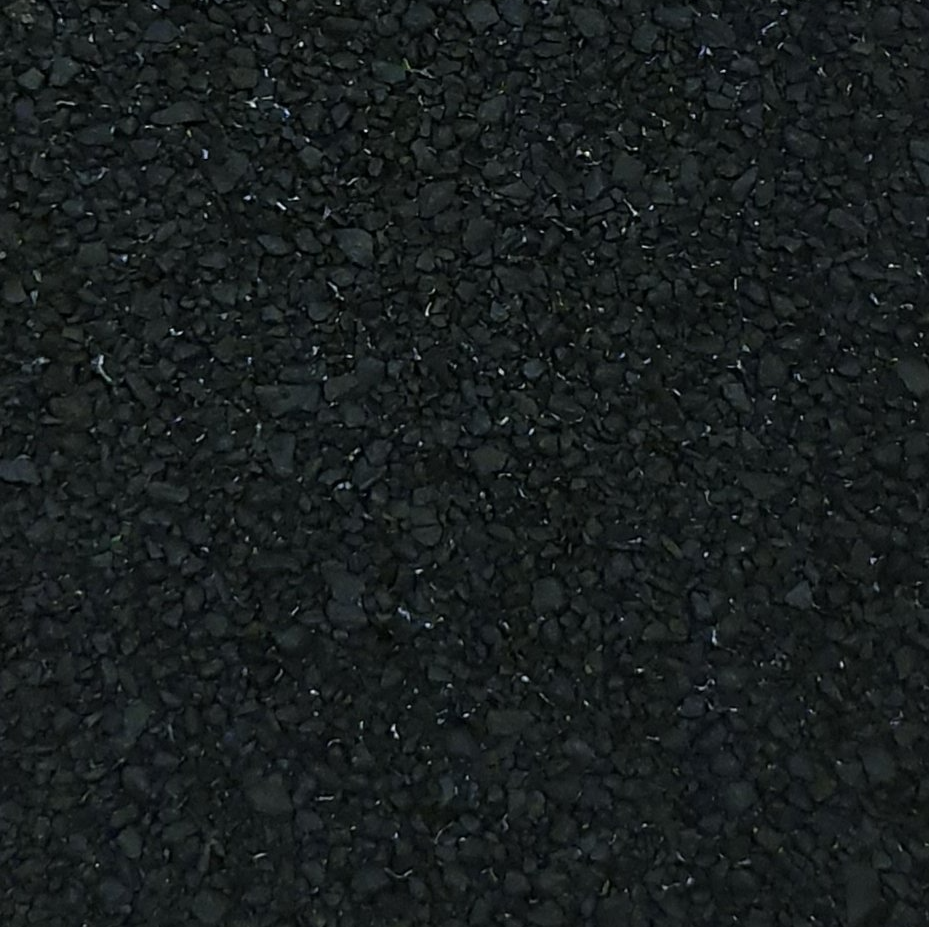

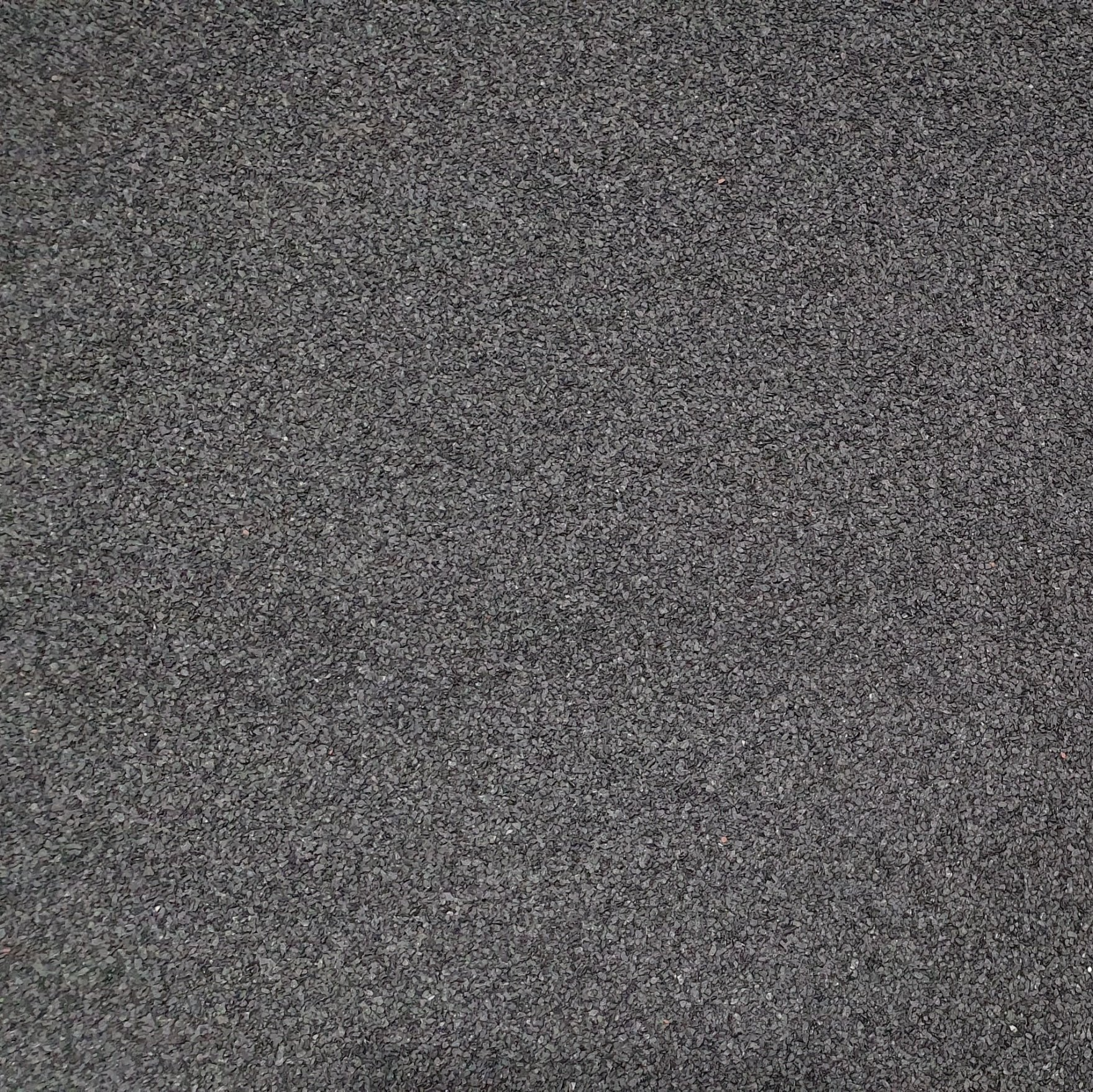

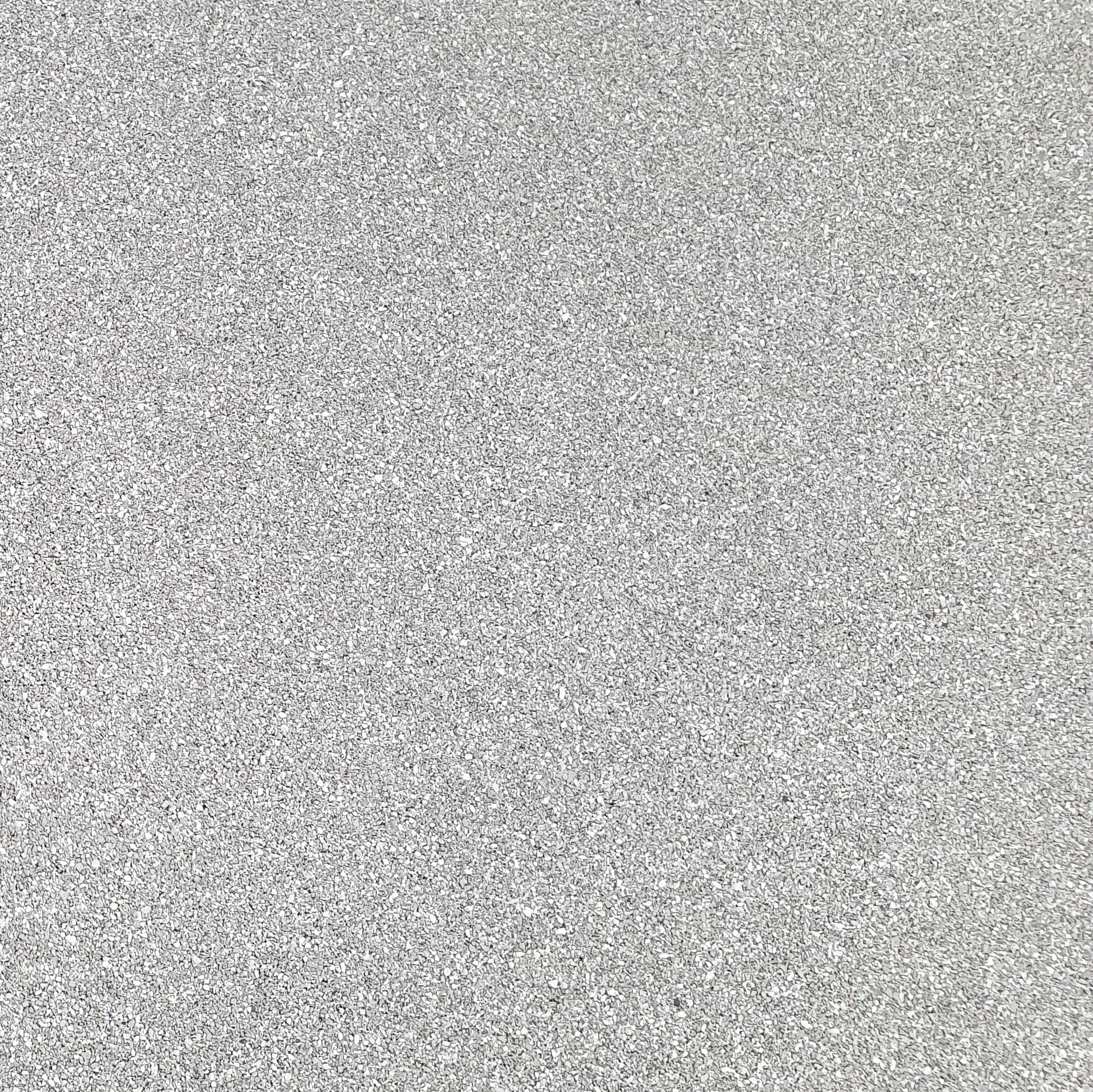

Colour Options

Ex Stock NZ

Features and advantages

Extra large sheets

Sheets Up to 3.7m wide and 30.4m long means faster installation and Less laps

Heat weldable seams and detailing

Fully integrated detailing, strong and secure Our support team is here to ensure everything runs smoothly, so you can focus elsewhere.

Polyester reinforced sheet

Extremely high tear and puncture resistance

Eco Friendly

Contains a high recycled content

Light colours available

Heat, light and UV reflection reducing membrane ageing and heat absorption

Warranty

A 20 Year Material Warranty is issued when Installed by an approved Sealco Ltd applicator.

Two Layer Application

With a two layer system, the FlameSEAL gives double the added protection of single ply membranes.

Flexibility

The modified bitumen sheets expand and contract as the temperature changes, without cracking or splitting. This flexibility makes FlameSEAL torch-on membranes durable and long-lasting.

Material Performance

FlameSEAL’s Tensile strength, elongation break, cold flexibility and tear resistance test data confirms and ensures that the mechanical properties will perform to the client and architects expectations.

Welded System

The FlameSEAL torch-welded laps will provide lap joints and detailing that is equivalent to the strength of the sheet.

Mineral Chip finish

The mineral chip finish provides long term UV protection, colour selection options, durability and an aesthetic finish.

Durability

When installed to Sealco Ltd.’s specification, subject to normal environmental conditions and use and when properly maintained, the FlameSEAL membrane system will exceed 20 years.

High Puncture Resistance

The FlameSEAL two layer system has a high puncture resistance giving added resistance to falling objects or construction damages.

Peel & Stick SpeedSEAL

Sealco can offer a full peel & stick (no flame) base and cap membrane eliminating the need for dangerous flame use, reducing installation risks.

Compliance

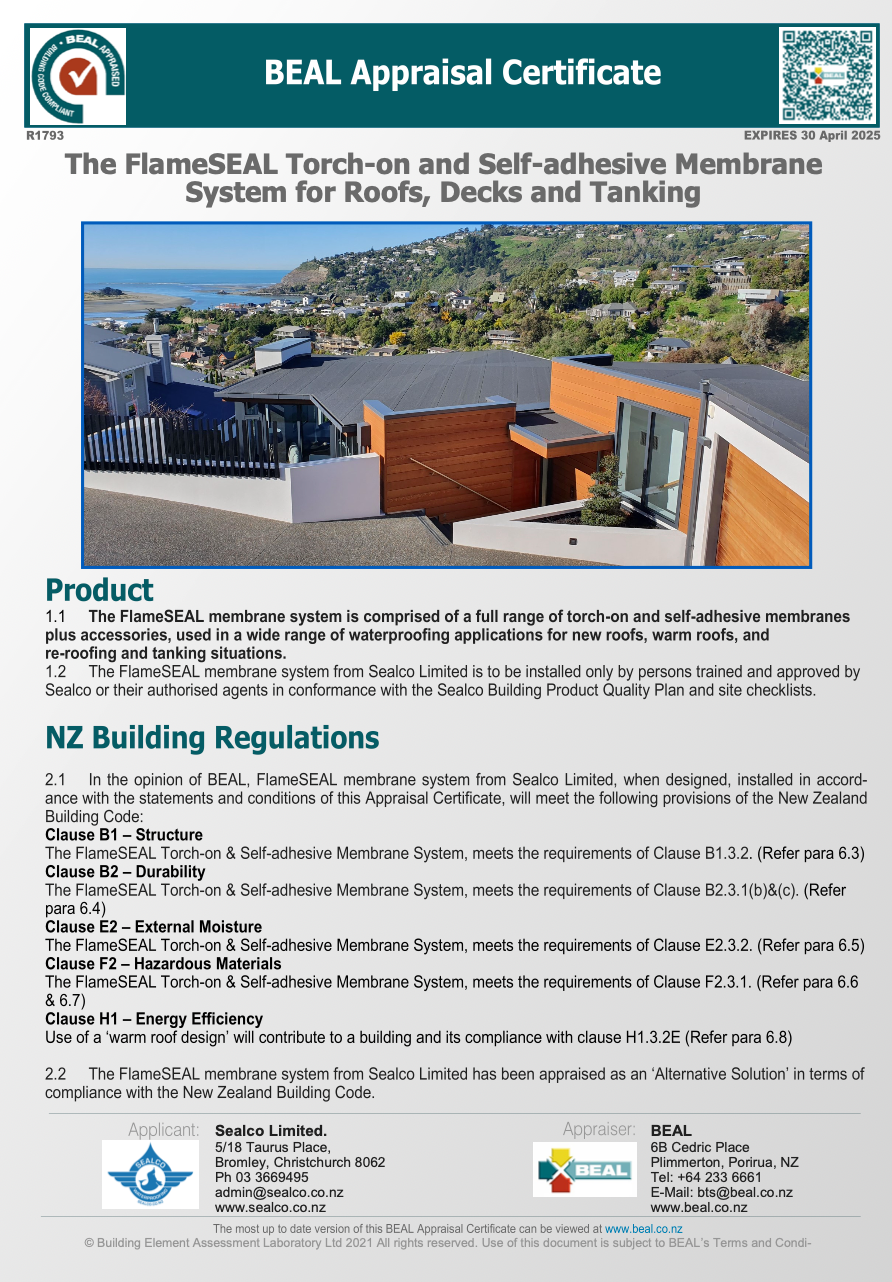

The FlameSEAL membrane system is BEAL PCC approved to be used on roofs, decks, parapets and internal gutters complies with the NZBC E2/AS1 as an alternative solution.

Full System 20/20 Warranty available for FlameSEAL and SpeedSEAL double layer

Downloads

Product Information

Sealco FlameSEAL-Brochure

Sealco FlameSEAL Manual

Sealco Accessories

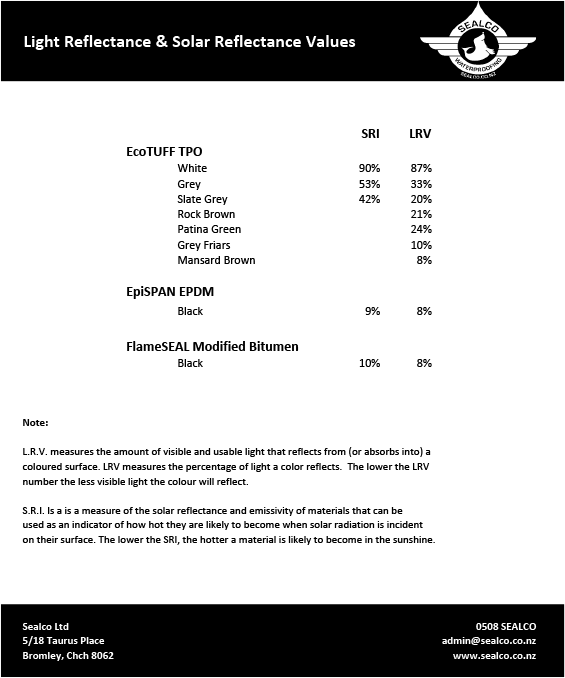

Sealco Membranes Light Reflectance Chart

Product Approvals

Sealco FlameSEAL Product Compliance Certificate 2024-25

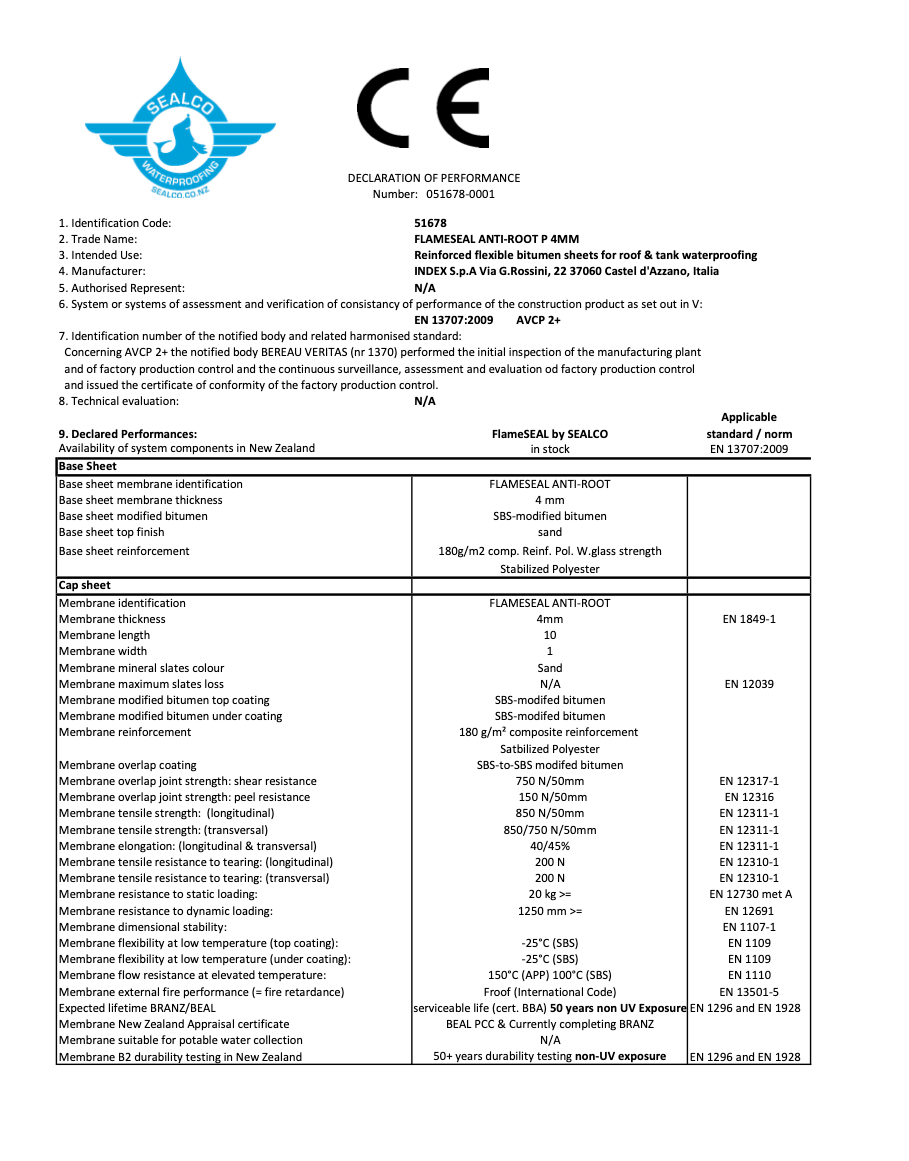

FlameSEAL ANTI-ROOT Declaration of Performance 2022

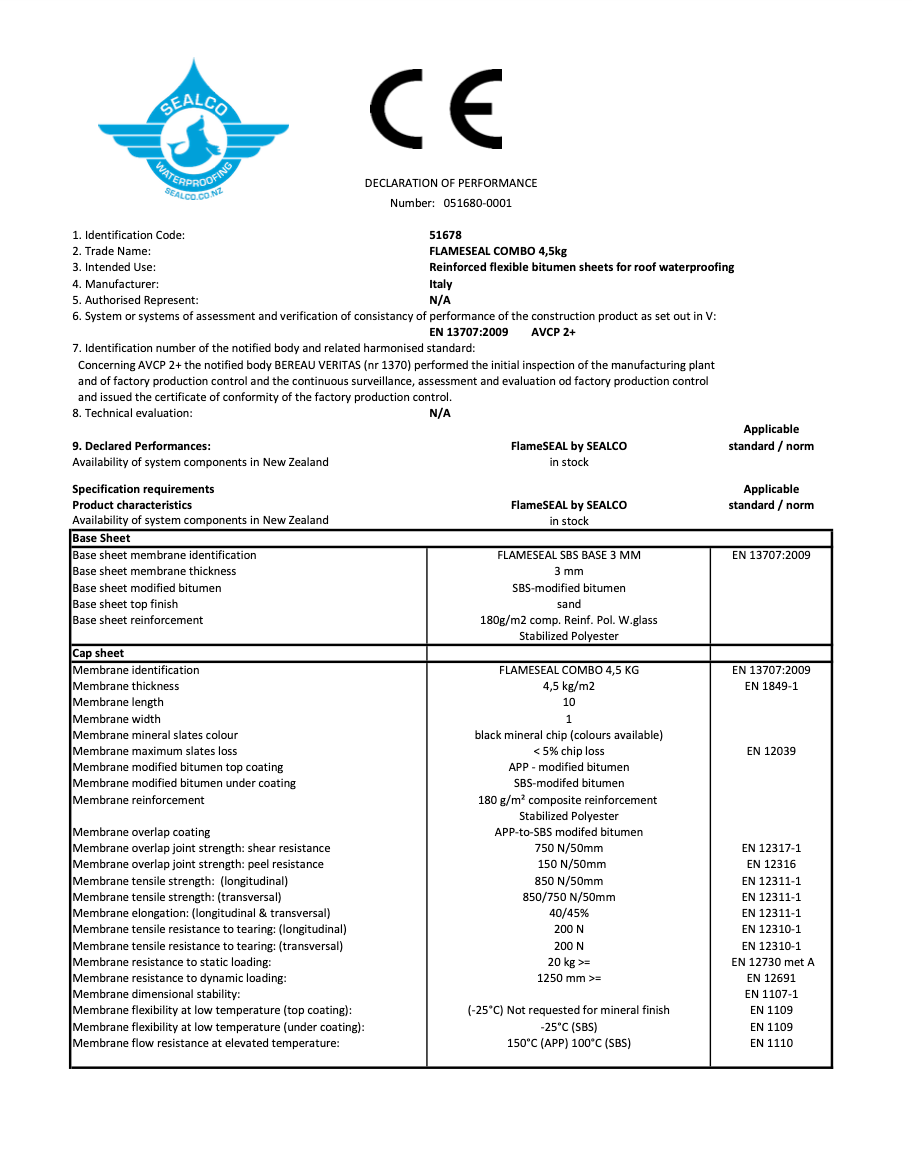

FlameSEAL Modified Bitumen Declaration of Performance 2022

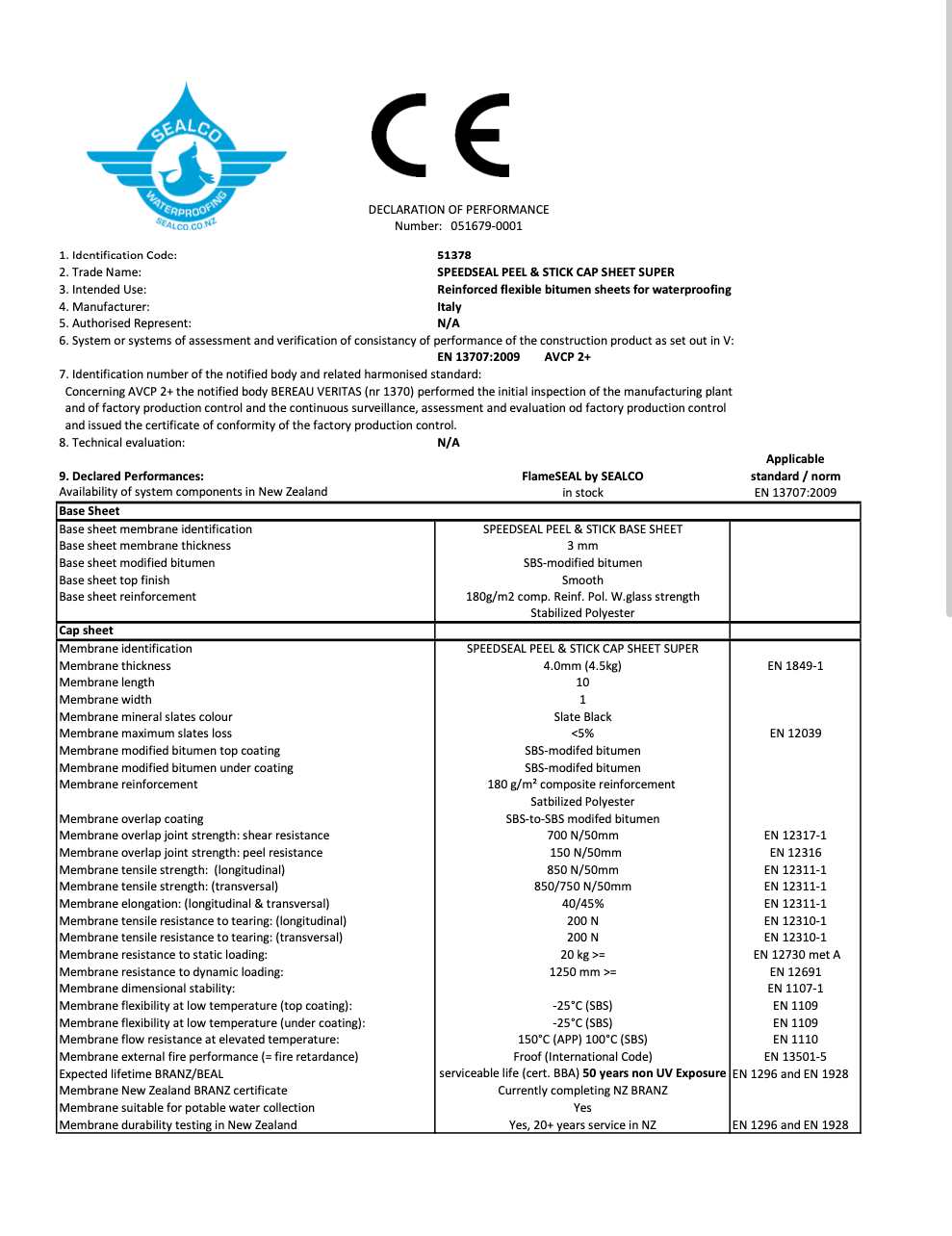

SpeedSEAL P&S Cap Sheet Declaration of Performance 2022

Architectural Information

4423WT - FlameSEAL Membrane Spec

4423WT FlameSEAL WarmSEAL Spec

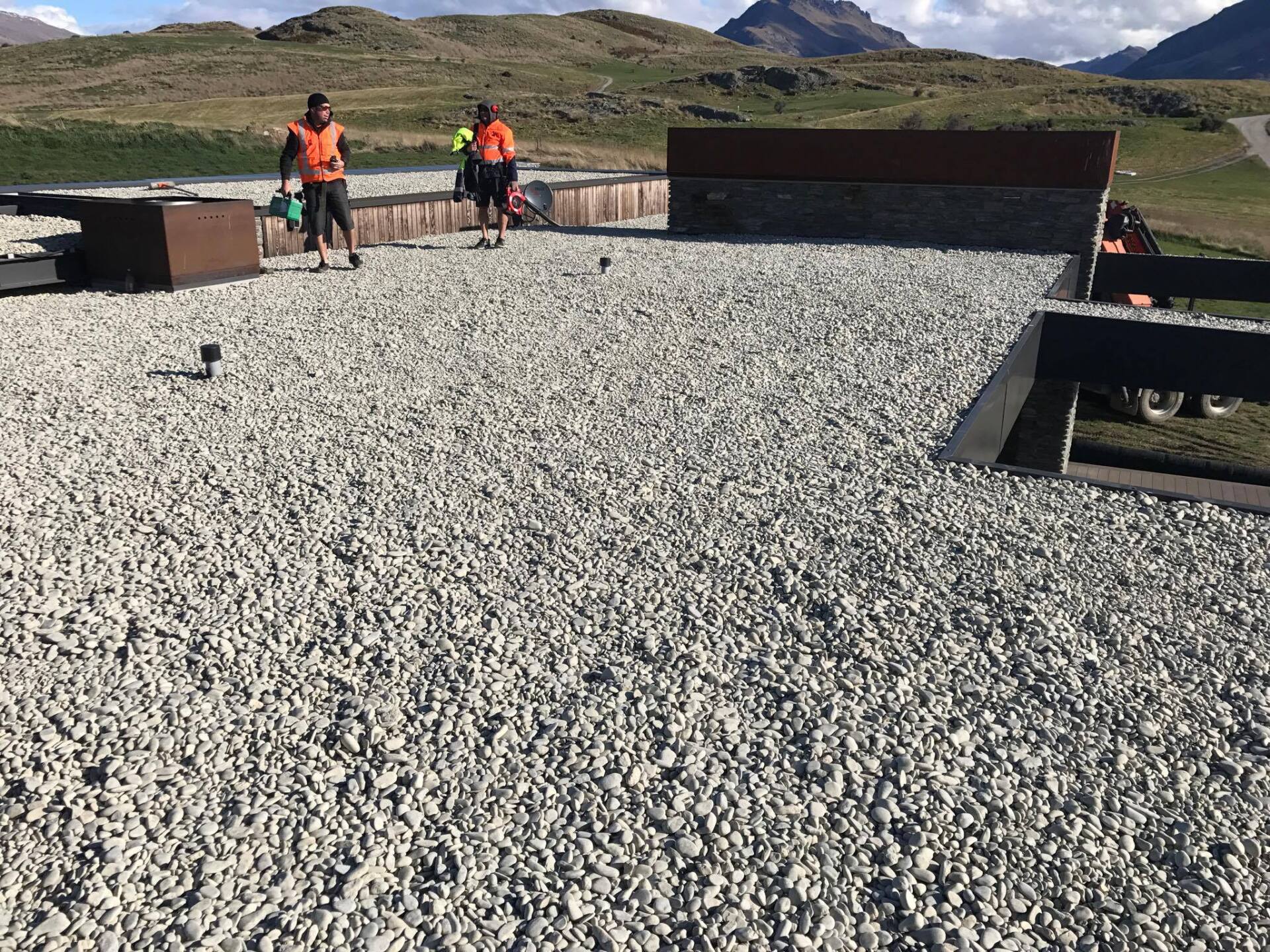

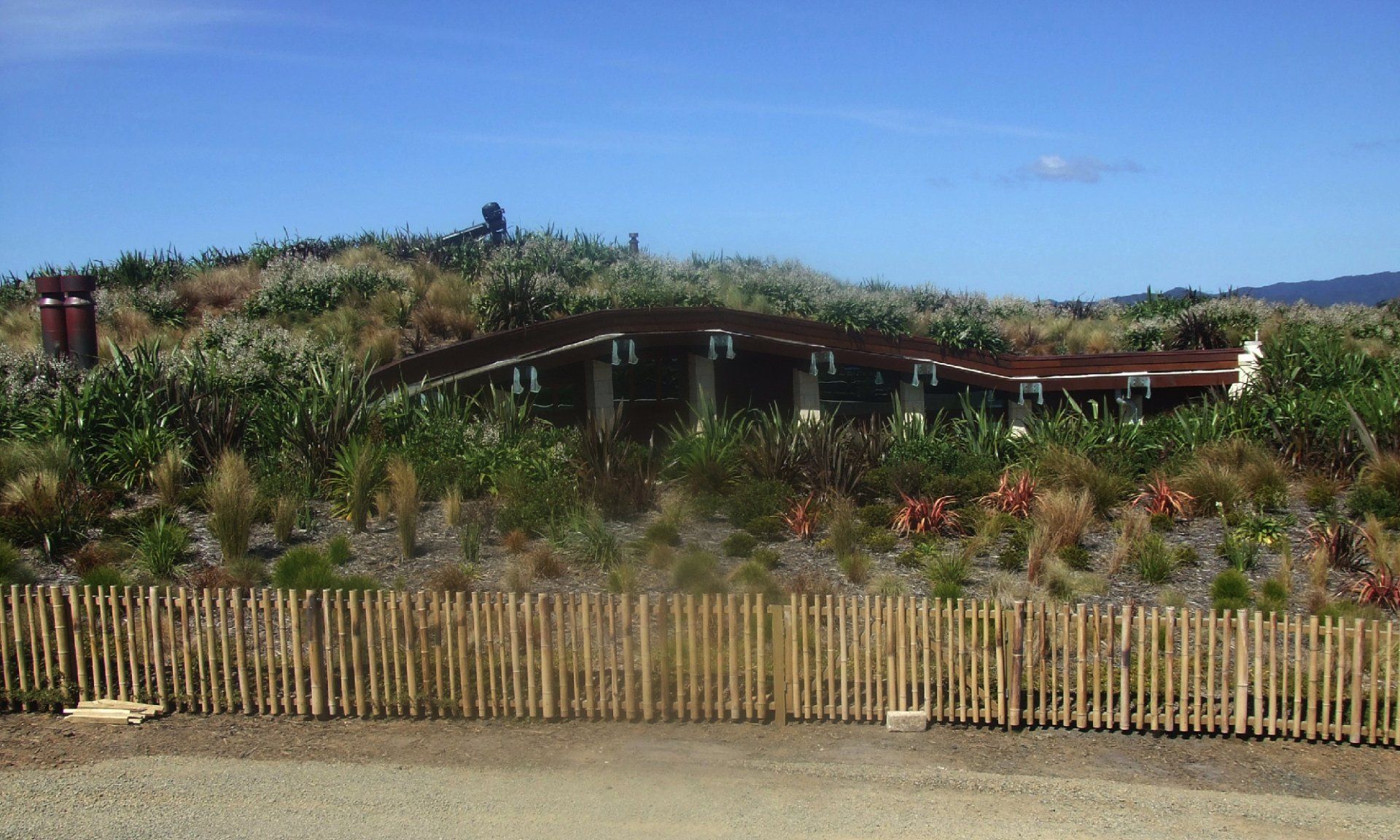

4421WR - FlameSEAL GreenSEAL Spec

Checklists and Quality Control

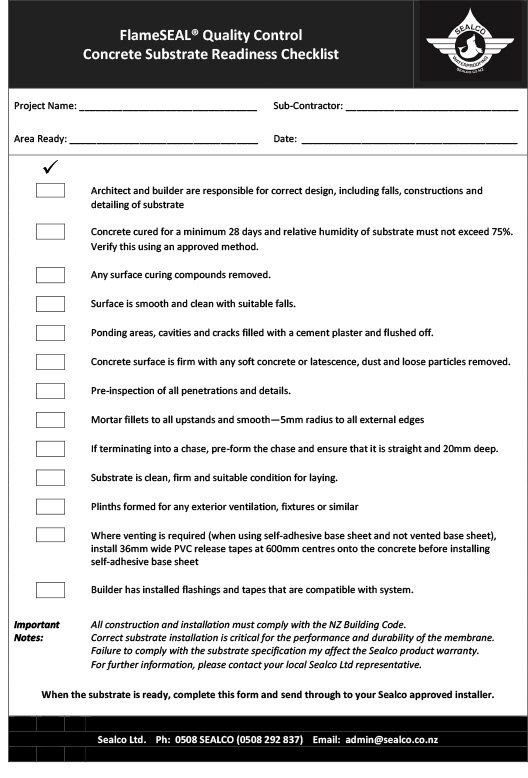

FlameSEAL Concrete Substate Checklist

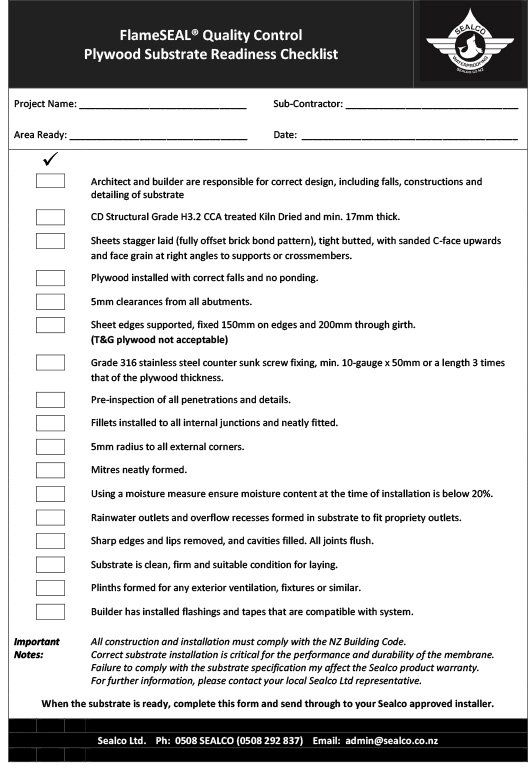

FlameSEAL Plywood Substrate Checklist

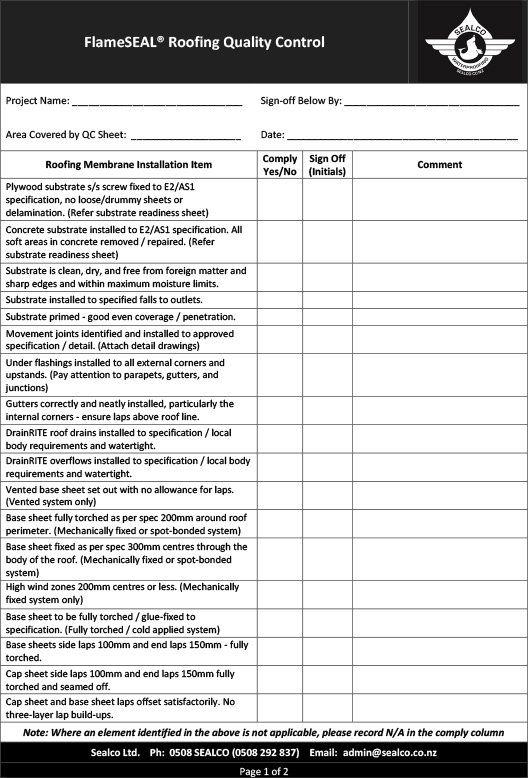

FlameSEAL Roofing QC Sheet

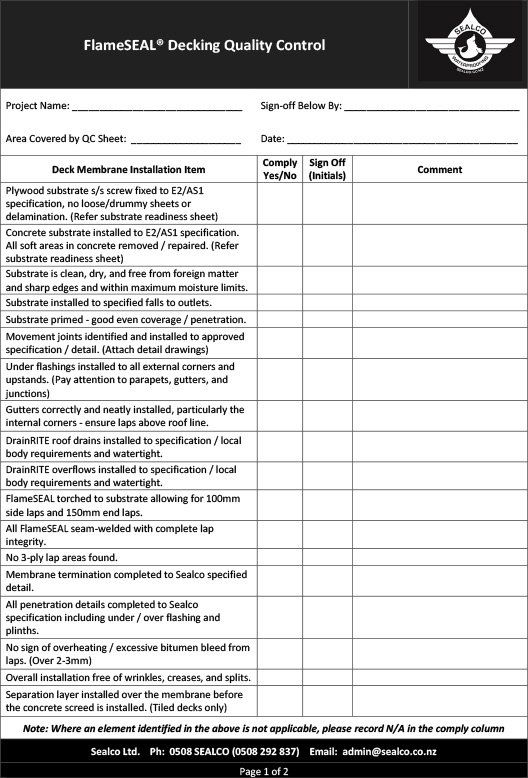

FlameSEAL Decking QC Sheet

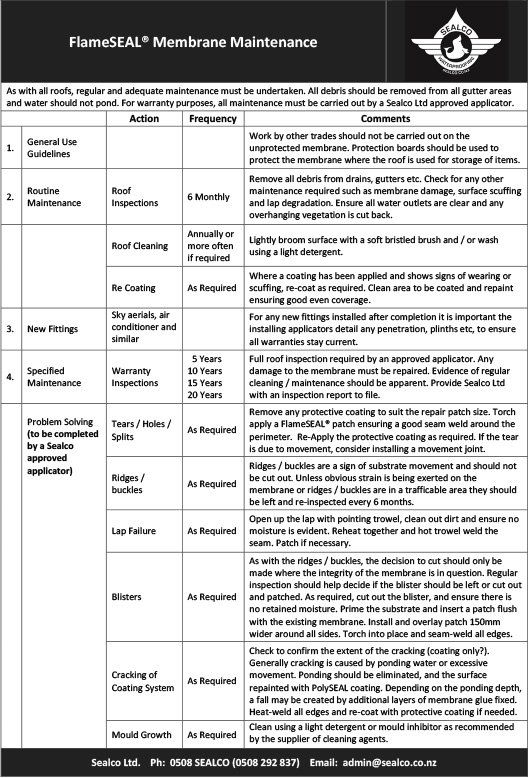

FlameSEAL Maintenance Sheet

MSDS Information

FlameSEAL Water Based Primer - SDS June 2021

FlameSEAL Cap Sheet GREY - SDS June 2021

Tixoplast Sealant - SDS July 2021

FlameSEAL Modified Bitumen Base & Cap Sheet - SDS September 2021

Drawings

Barge Detail

Chase Termination

Compress Termination

Concrete Upstand

drainRITE Water Outlet 1

drainRITE Water Outlet 3

drainRITE Water Outlet 4

drainRITE Water Outlet 5

drainRITE Water Outlet 2

ecoJACK Paver Threshold Detail Type 1

ecoJACK Paver Threshold Detail Type 2

ecoJACK Paver Wall Detail Type 1

ecoJACK Paver Wall Detail Type 2

External Gutter

flowRITE Outlet Scupper Section

flowRITE Overflow Scupper
Section 1

Flue Penetration - Dektite

Gutter Parapet

Gutter Upstand 1 - Cladding over Cavity

Gutter Upstand 2 - Cladding over Cavity

Gutter Upstand Type 1 - Direct Fix Cladding

Gutter Upstand Type 2 - Direct Fix Cladding

Internal Ply Angle Type 1

Internal Ply Angle Type 2

Outlet Scupper Plan

Pipe Penetration - Dektite

Roof Batten Join

Roof Expansion Cap Detail

Substarte Expansion Joint

Substrate Options

Timber Raft Floating Deck Threshold Detail Type 1

Timber Raft Floating Deck Threshold Detail Type 2

Timber Raft Floating Deck Wall Detail - Type 1

Timber Raft Floating Deck Wall Detail - Type 2

VentRITE Moisture Vent - Concrete Substrate 1

VentRITE Moisture Vent - Concrete Substrate 2

VentRITE Moisture Vent - Ply Substrate 1

VentRITE Moisture Vent - Ply Substrate 2

FS R Plinth

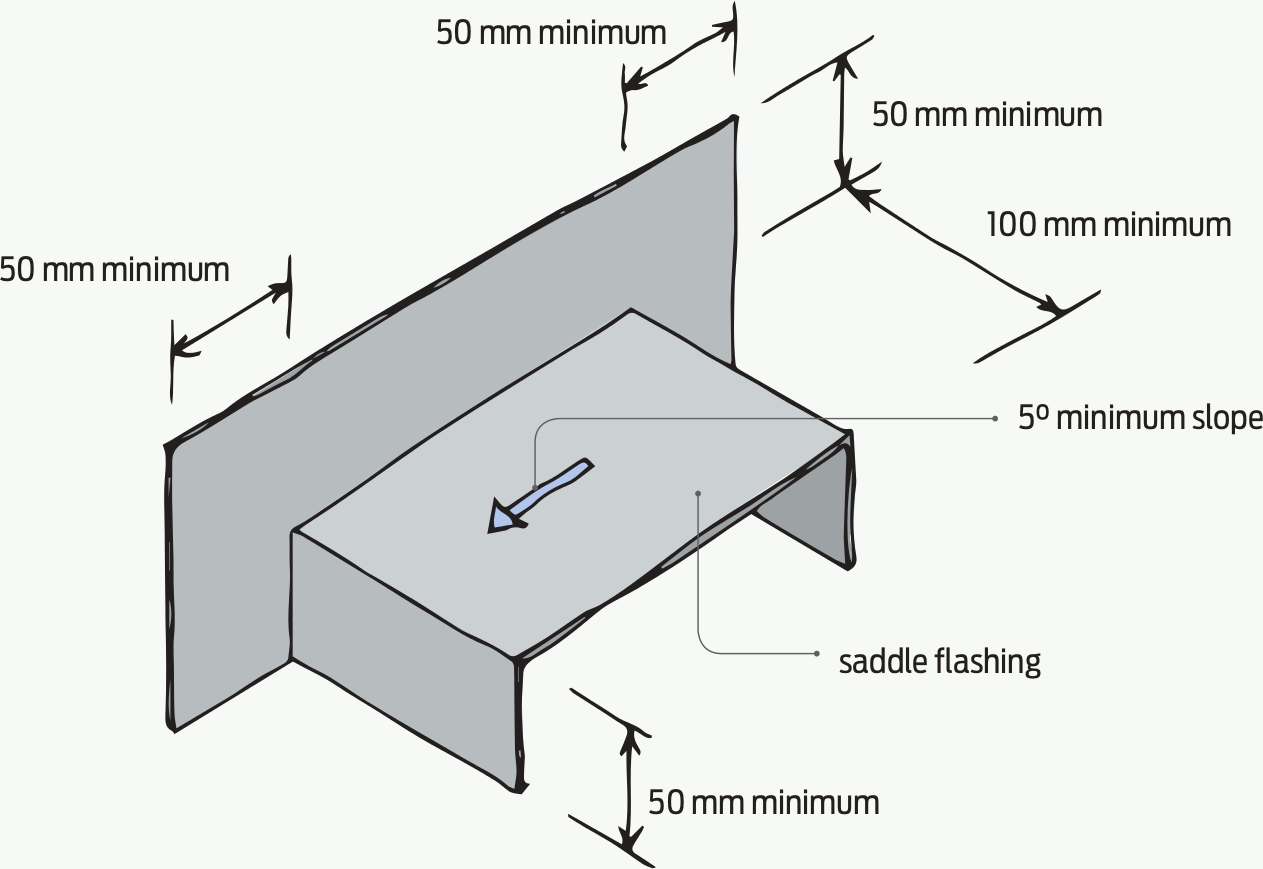

Membrane Saddle Flashing
