Sealco Waterproofing are proud to be the first in the market with our EcoTUFF TPO membranes.


Introduced to NZ in 2004, EcoTUFF has gained much popularity in the New Zealand market mainly due to the quality, price and added features. EcoTUFF TPO thermoplastic polyolefin membrane is a co-polymer of polypropylene and ethylene propylene rubber that has been formed into a membrane sheet and reinforced with a heavy duty polyester scrim. This means you get a flexible rubberised material with the ability to be heat welded for permanent secure detailing.


EcoTUFF Is manufactured by the largest and most technically advanced manufacturer in the USA and is well known internationally to be one of the best performing membranes available. It is BRANZ Appraised and comes with a full system of heat welded accessories to ensure watertightness in all areas of your roof. EcoTUFF provides absolute watertight integrity for low-slope and pitched roofs, gutters, parapets, pond liners, balconies, under floating decks and roof gardens of commercial and residential buildings.


A ‘second generation’ single ply product, EcoTUFF marries the advantages of previous generation materials while eliminating their limitations. The result is a roofing membrane that is faster and easier to install yet offers outstanding resistance to weathering, temperature extremes, ultraviolet exposure and a whole wide variety of industrial chemicals.

Sealco U-Anchor

The U2400-TPO is a lightweight rooftop attachment system consisting of a U-Anchor 2000 Series plate and cover membrane. The cover membrane is factory sealed to the top of the plate. The U2400-TPO provides a positive, watertight, manufacturer accepted attachment for mechanically attached and fully adhered TPO single-ply membranes.


U-Anchor Attachment

The U2400-TPO is attached by fastening through the roofing assembly into the structural decking with 2-8 approved fasteners. The membrane cover is then hot air welded around the perimeter to the roof membrane. Fastener selection is dictated by the system assembly, deck type, and the project engineer. Refer to installation instructions and the specified roofing material manufacturer requirements before installing.


Features and advantages

Extremely strong and lightweight.

Fast installation, approximate rate of 12 per man hour.

Installs on any surface from flat to vertical.

20 Year Material Only Warranty

Performance Data

Test Results
Ultimate Load Tensile Strength 4,000 lbs
Ultimate Load Shear Strength 3,000 lbs

Results are based on plate performance only. Test was performed in accordance with: ICC-ES AC467 Section 3.2

Downloads

Product Information

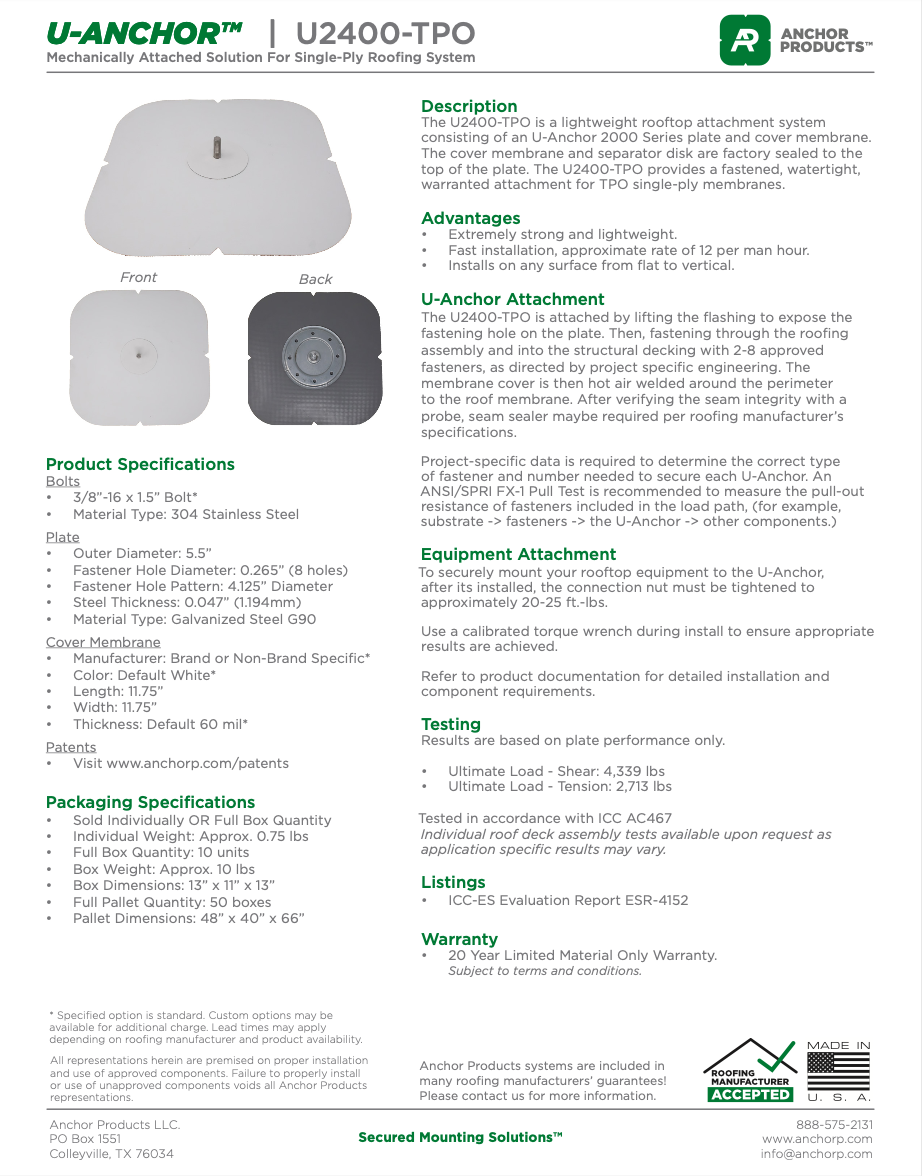

U-2400 TPO Data Sheet

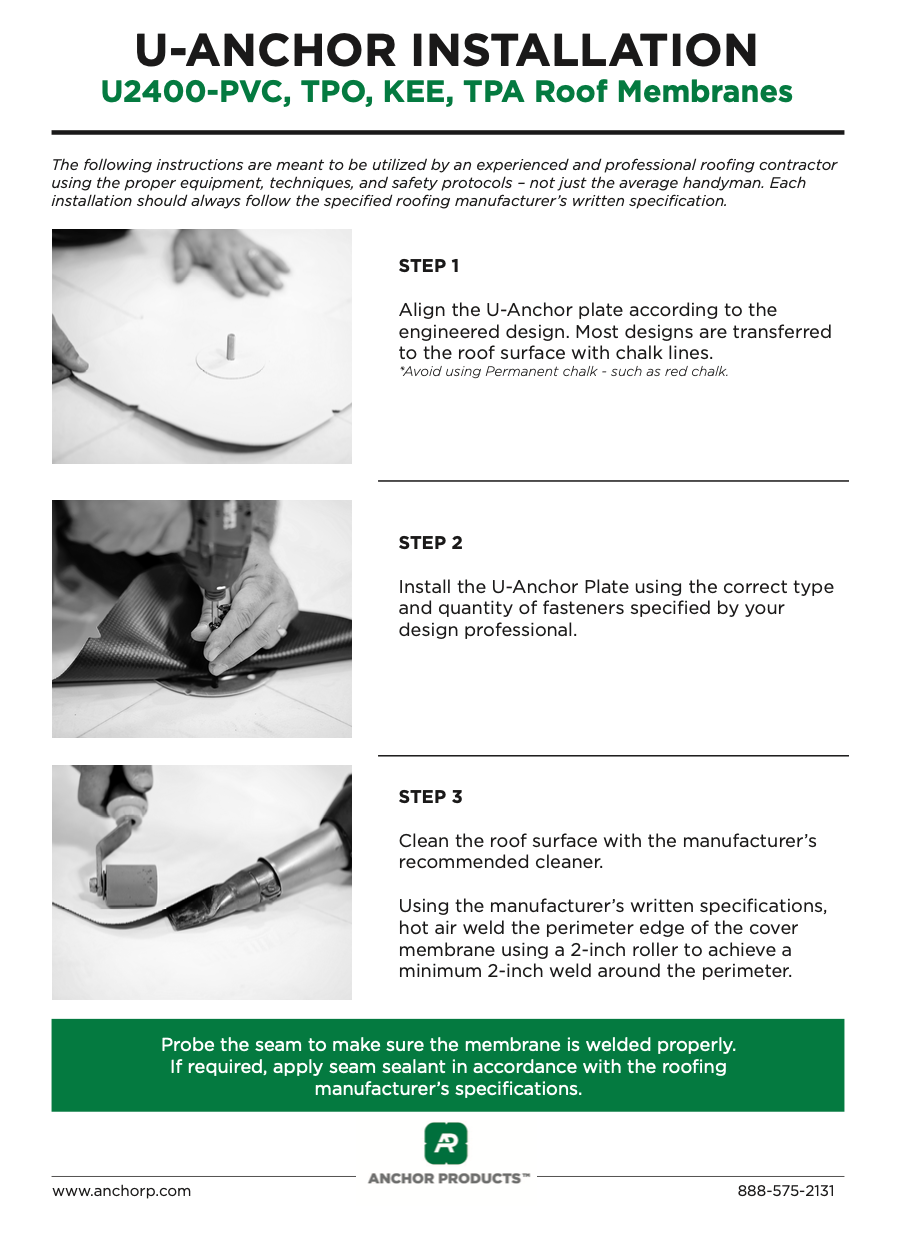

U2400 – Install Instructions

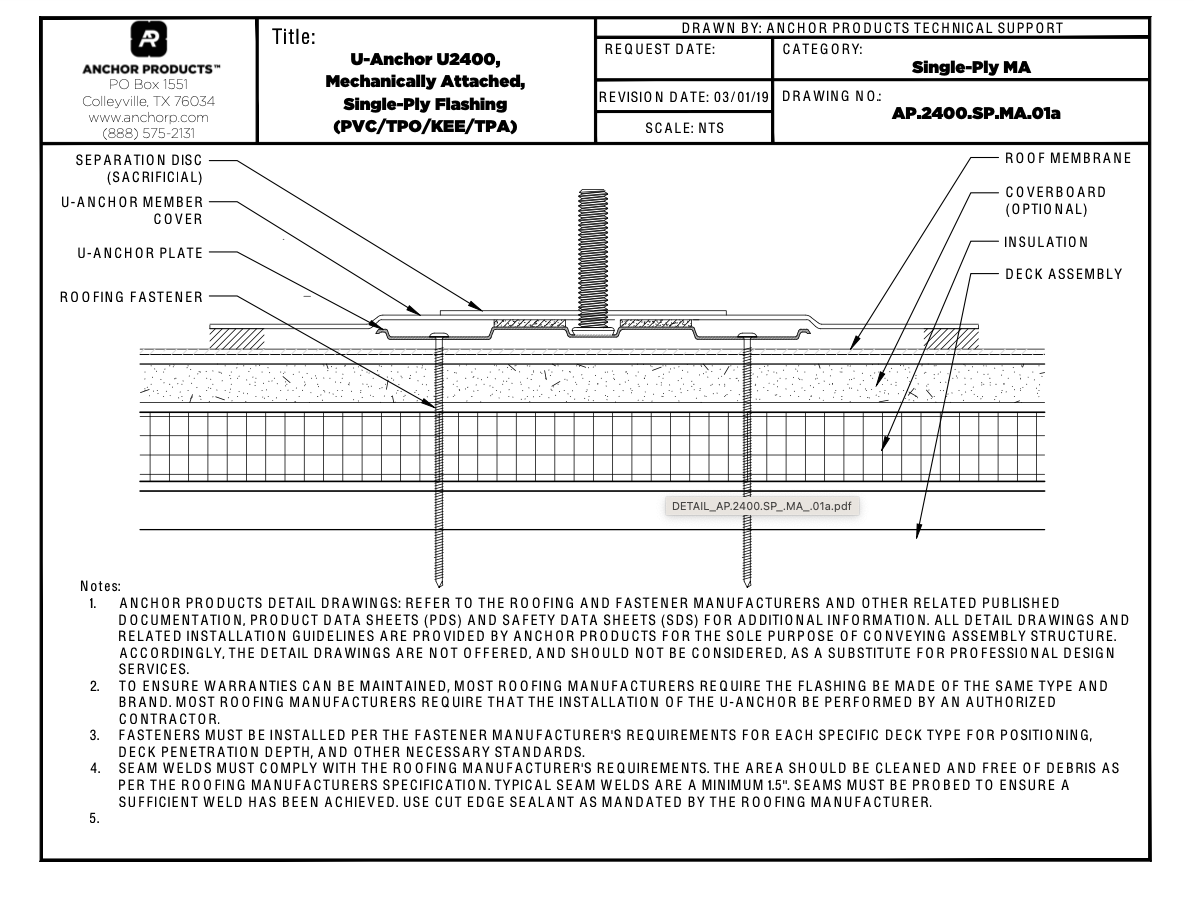

U2400 Detail Drawing – Mechanically Attached

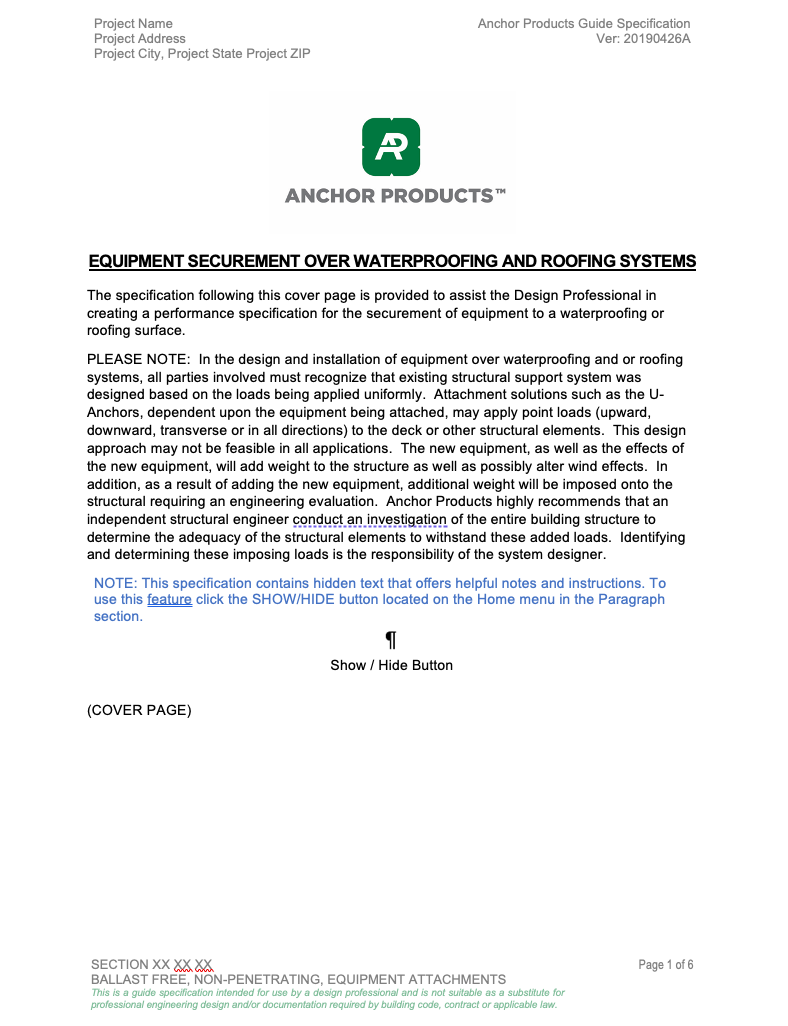

Product Guide – AP Guide Specification
