Sealco Waterproofing are proud to be the first in the market with our EcoTUFF TPO membranes.


Introduced to NZ in 2004, EcoTUFF has gained much popularity in the New Zealand market mainly due to the quality, price and added features. EcoTUFF TPO thermoplastic polyolefin membrane is a co-polymer of polypropylene and ethylene propylene rubber that has been formed into a membrane sheet and reinforced with a heavy duty polyester scrim. This means you get a flexible rubberised material with the ability to be heat welded for permanent secure detailing.


EcoTUFF Is manufactured by the largest and most technically advanced manufacturer in the USA and is well known internationally to be one of the best performing membranes available. It is BRANZ Appraised and comes with a full system of heat welded accessories to ensure watertightness in all areas of your roof. EcoTUFF provides absolute watertight integrity for low-slope and pitched roofs, gutters, parapets, pond liners, balconies, under floating decks and roof gardens of commercial and residential buildings.


A ‘second generation’ single ply product, EcoTUFF marries the advantages of previous generation materials while eliminating their limitations. The result is a roofing membrane that is faster and easier to install yet offers outstanding resistance to weathering, temperature extremes, ultraviolet exposure and a whole wide variety of industrial chemicals.

EcoJACK Paver Stands

ecoJack® Adjustable Paver Stands


ecoJack® is a new generation height and slope adjustable pedestal designed for paver and bearer support. It offers users a wide range of component parts to cater to different height requirements, including three pedestal tops (43, 84 and 164mm) and two pedestal bases (74 and 117mm).


The basic pedestal height can be increased to above 1000mm using only three Extenders, thus providing significant cost savings for pedestal heights above 500mm. Building on the innovative features of its predecessor, the ecoJack® 75, the ecoJack® is designed and engineered to provide more versatile and cost-effective solutions for paver and decking installation.


ecoJack® may be used with a combination of one or more accessories, including top and base correctors that allow slope compensation up to 5% each, i.e. 10% total slope correction. The base slope corrector enables the pedestal to remain upright on a sloping surface, minimizing possibility of toppling at extended heights.


Drainage holes and a slope design at the base flange of the two pedestal bases prevent water retention and breeding of pests.

Features and advantages

Fewer parts required for greater heights.

Easy screw asjustments High compressive strength.

Pedestal is upright on sloped surface.

Does not damage waterproofing membranes

Efficient surface drainage. Allows air ventilation

Eliminates bedding sand and screeds.

Made from 100% recycled materials. Supports Green Building certification.

Capable of progressive height increase.

Slope correctors at top and base of pedestal.

Eliminates efflorescence and algae

Easy-to-install, cost effective and lightweight.

Reduces sound transmission.

Easy access to concealed services.

Downloads

Brochures

Features for Tile & Timber Raft

VersiJack Paver & Bearer Support Brochure

SpiraPave Brochure - Low Height

VersiPave Brochure

VersiFrame Paving Support Pad

Data Sheets

SpiraPave Height Chart

Spirapave Chart

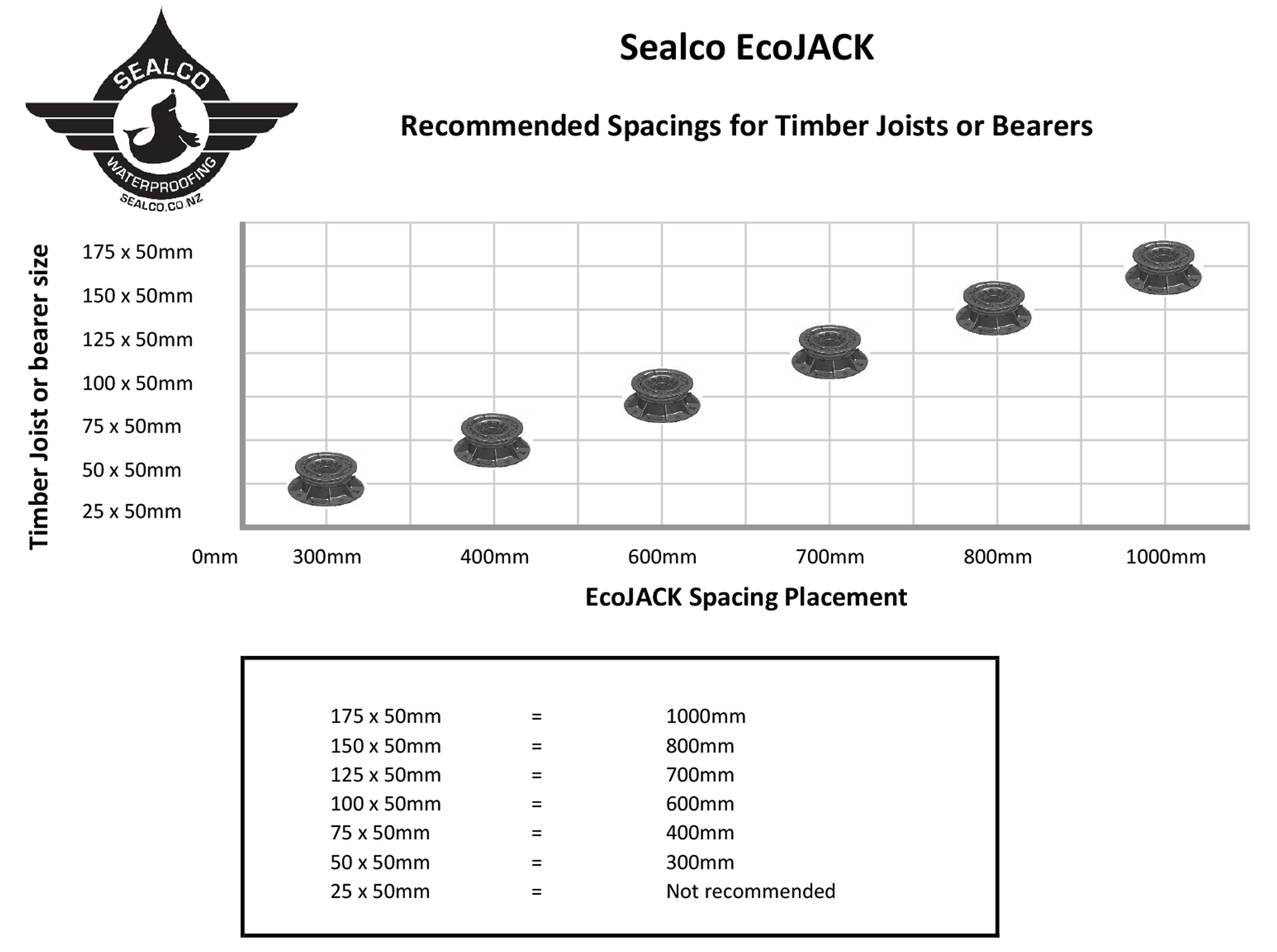

Spacing Chart

EcoTUFF

Timber Raft Floating Deck - Threshold Detail - Type 2

Timber Raft Floating Deck - Wall Detail Type 2

Paver - Threshold Detail Type 2

Paver - Threshold Detail Type 1

Paver - Wall Detail Type 2

Paver - Wall Detail Type 1

FlameSEAL

Wall Detail - Type 1

Wall Detail - Type 2

Threshold Detail - Type 2

Threshold Detail - Type 1

Manufacturers Drawings

VJ S-V0002 2(A4)

VJ S-V0002 1(A4)

VJ S-V0001 1(A4)

VJ S-01

VJ S-02
